Prognostic scores of extracorporeal membrane oxygenation: a scoping review

doi:10.5847/wjem.j.1920-8642.2025.078

Abstract

Abstract:

BACKGROUND: Extracorporeal membrane oxygenation (ECMO) is an effective measure for saving the lives of critically ill patients. Prompt identification of the risk factors for mortality among patients receiving ECMO and comprehensive analysis of the long-term prognosis of survivors are vital. This scoping review summarized the representative prognostic scoring systems, aiming to help clinicians in selecting an appropriate scoring system to avoid unnecessary medical resource consumption and reduce ECMO-associated mortality.

METHODS: A comprehensive search of multiple databases, including PubMed, Embase, and the Cochrane Library, was conducted. After removing duplicate studies, a full-text review was performed, and all studies that reported score systems before and/or after ECMO support were included. This protocol adheres to the Preferred Reporting Items for Systematic reviews and Meta-Analyses extension for Scoping Reviews (PRISMA-ScR) and has been registered with the Open Science Framework (osf.io/zp4ge).

RESULTS: Among the 114 studies included, we identified three scores for patients receiving veno-venous ECMO (VV-ECMO), five scores for patients receiving veno-arterial ECMO (VA-ECMO), and three critical illness scores, which apply to both VV- and VA-ECMO conditions. All characteristics of these scoring systems, their advantages, and their limitations were summarized.

CONCLUSION: The implementation of an ECMO scoring system helps to assess the condition of critically ill patients, predict outcome, and provide objective indicators to determine the optimal timing for ECMO intervention. Due to the limitations of the currently available scores, further efforts in improving and validating the ECMO scoring system are needed to achieve the goals of minimizing unnecessary consumption of medical resources and reducing mortality rates.

Key words: Extracorporeal membrane oxygenation, Life support, Scoring system, Critical illness, Intensive care

Jie Zhu, Sijie Lu, Yawen Wu, Qiming Zhao, Weina Pei, Yanlin Hu, Mingming Li, Yongnan Li, Xiangyang Wu. Prognostic scores of extracorporeal membrane oxygenation: a scoping review[J]. World Journal of Emergency Medicine, 2025, 16(4): 303-312.

Figures/Tables 3

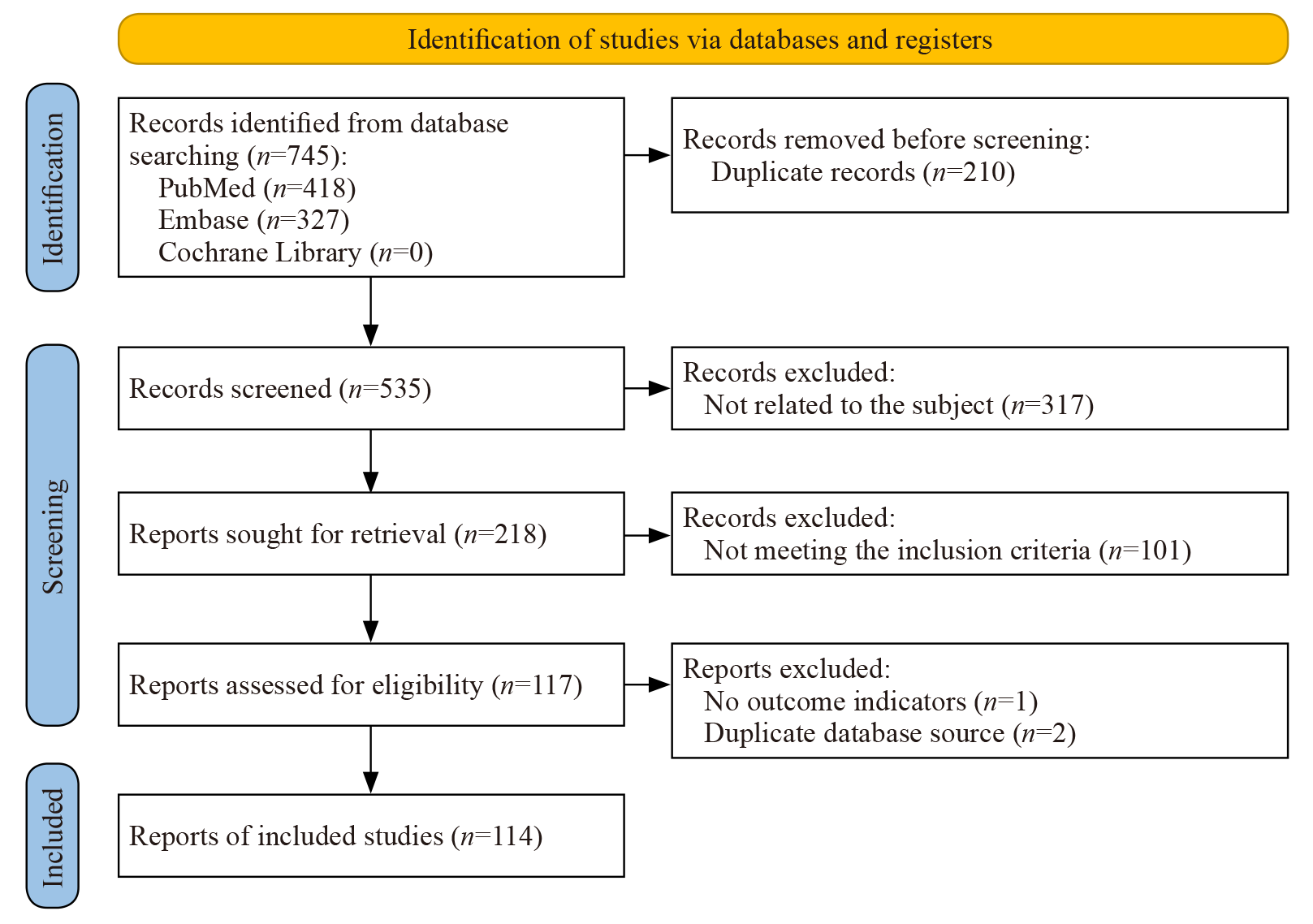

Figure 1.

Table 1.

Table 2.

Representitive venous-arterial extracorporeal membrane oxygenation (ECMO) score system

Score system	Score rubrics	Advantages	Limitations	Sample size and mortality
SAVE score^[16]	·Diagnosis ·Age ·Weight ·Pre-ECMO pulse pressure ·Pre-ECMO diastolic pressure ·Pre-ECMO cardiac arrest ·Peak inspiratory pressure ·Duration of intubation ·Acute renal failure ·Chronic renal failure ·Pre-ECMO HCO₃ level ·Other pre-ECMO organ failure	1) the first score to predict the risk of death in CS patients 2) validated predicting accuracy	1) not suitable for patient underwent cardiopulmonary resuscitation 2) not fully reflect treatment decisions made at the correct time 3) cannot eliminate the inherent uncertainty of some critically ill patients	3,846 (58%)
ENCOURAGE risk score^[21]	·Age ·Female sex ·Body mass index ·Glasgow coma score ·Creatinine ·Lactate ·Prothrombin activity	1) data incorporated from multiple sources 2) with long-term follow-up data	1) limited range of indications for scoring 2) the original data is from experienced ECMO centers, with less extensibiltiy	138 (53%)
AMI-ECMO risk Score^[23]	·Age ·Creatinine ·Serum lactate ·Lack of TIMI grade 3 blood flow in the culprit artery	A simple tool to stratify the risk of AMI-CS patients considering VA-ECMO support	Small sample size with limited statistical power and generalizability	126 (56%)
ECMO-ACCEPTS score^[25]	·Age ·Urgent admission ·Atrial fibrillation ·Hypertension ·Pulmonary hypertension ·Coronary artery disease ·Congestive heart failure ·Prior cardiopulmonary resuscitation ·Acute coronary syndrome ·Heart transplantation	A rapid bedside tool to differentiate high-risk and low-risk individuals	1) bias caused by patient baseline 2) the presence of survival bias	8,351 (39%)
REMEMBER score^[26]	·Older age ·Left main coronary artery disease ·Inotropic score ·CK-MB ·Serum creatinine ·Platelet count	Identification of patients who can benefit from VA-ECMO treatment after CABG	1) narrow applicable population 2) may underestimate the role of VA-ECMO in CABG patients	166 (55%)

Table 2.

References 39

1	Schechter MA, Ganapathi AM, Englum BR, Speicher PJ, Daneshmand MA, Davis RD, et al. Spontaneously breathing extracorporeal membrane oxygenation support provides the optimal bridge to lung transplantation. Transplantation. 2016; 100(12): 2699-704. pmid: 26910331
2	The Extracorporeal Life Support Organization (ELSO). ECLS Registry Report European Summary 2020.
3	Peters MDJ, Marnie C, Tricco AC, Pollock D, Munn Z, Alexander L, et al. Updated methodological guidance for the conduct of scoping reviews. JBI Evid Synth. 2020; 18(10): 2119-26. doi: 10.11124/JBIES-20-00167 pmid: 33038124
4	Tricco AC, Lillie E, Zarin W, O’Brien KK, Colquhoun H, Levac D, et al. PRISMA extension for scoping reviews (PRISMA-ScR): checklist and explanation. Ann Intern Med. 2018; 169(7): 467-73. doi: 10.7326/M18-0850 pmid: 30178033
5	Chaves RCF, Rabello Filho R, Timenetsky KT, Moreira FT, Vilanova LCDS, Bravim BA, et al. Extracorporeal membrane oxygenation: a literature review. Rev Bras Ter Intensiva. 2019; 31(3): 410-24.
6	Schmidt M, Zogheib E, Rozé H, Repesse X, Lebreton G, Luyt CE, et al. The PRESERVE mortality risk score and analysis of long-term outcomes after extracorporeal membrane oxygenation for severe acute respiratory distress syndrome. Intensive Care Med. 2013; 39(10): 1704-13. doi: 10.1007/s00134-013-3037-2 pmid: 23907497
7	Fisser C, Rincon-Gutierrez LA, Enger TB, Taccone FS, Broman LM, Belliato M, et al. Validation of prognostic scores in extracorporeal life support: a multi-centric retrospective study. Membranes (Basel). 2021; 11(2): 84.
8	Papazian L, Forel JM, Gacouin A, Penot-Ragon C, Perrin G, Loundou A, et al. Neuromuscular blockers in early acute respiratory distress syndrome. N Engl J Med. 2010; 363(12): 1107-16.
9	Schmidt M, Bailey M, Sheldrake J, Hodgson C, Aubron C, Rycus PT, et al. Predicting survival after extracorporeal membrane oxygenation for severe acute respiratory failure. The Respiratory Extracorporeal Membrane Oxygenation Survival Prediction (RESP) score. Am J Respir Crit Care Med. 2014; 189(11): 1374-82.
10	Rozencwajg S, Pilcher D, Combes A, Schmidt M. Outcomes and survival prediction models for severe adult acute respiratory distress syndrome treated with extracorporeal membrane oxygenation. Crit Care. 2016; 20(1): 392.
11	Huang L, Li T, Xu L, Hu XM, Duan DW, Li ZB, et al. Performance of multiple risk assessment tools to predict mortality for adult respiratory distress syndrome with extracorporeal membrane oxygenation therapy: an external validation study based on Chinese single-center data. Chin Med J (Engl). 2016; 129(14): 1688-95.
12	Joshi H, Flanagan M, Subramanian R, Drouin M. Respiratory ECMO survival prediction (RESP) score for COVID-19 patients treated with ECMO. ASAIO J. 2022; 68(4): 486-91. doi: 10.1097/MAT.0000000000001640 pmid: 35239533
13	Pappalardo F, Pieri M, Greco T, Patroniti N, Pesenti A, Arcadipane A, et al. Predicting mortality risk in patients undergoing venovenous ECMO for ARDS due to influenza A (H1N1) pneumonia: the ECMOnet score. Intensive Care Med. 2013; 39(2): 275-81. doi: 10.1007/s00134-012-2747-1 pmid: 23160769
14	Brazzi L, Lissoni A, Panigada M, Bottino N, Patroniti N, Pappalardo F, et al. Simulation-based training of extracorporeal membrane oxygenation during H1N1 influenza pandemic: the Italian experience. Simul Healthc. 2012; 7(1): 32-4. doi: 10.1097/SIH.0b013e31823ebccb pmid: 22293665
15	Rao P, Khalpey Z, Smith R, Burkhoff D, Kociol RD. Venoarterial extracorporeal membrane oxygenation for cardiogenic shock and cardiac arrest. Circ Heart Fail. 2018; 11(9): e004905.
16	Schmidt M, Burrell A, Roberts L, Bailey M, Sheldrake J, Rycus PT, et al. Predicting survival after ECMO for refractory cardiogenic shock: the survival after veno-arterial-ECMO (SAVE)-score. Eur Heart J. 2015; 36(33): 2246-56. doi: 10.1093/eurheartj/ehv194 pmid: 26033984
17	Amin F, Lombardi J, Alhussein M, Posada JD, Suszko A, Koo M, et al. Predicting survival after VA-ECMO for refractory cardiogenic shock: validating the SAVE score. CJC Open. 2020; 3(1): 71-81.
18	Dagher O, Noly PE, Ben Ali W, Bouabdallaoui N, Geicu L, Lamanna R, et al. Extracorporeal membrane oxygenation and microaxial left ventricular assist device in cardiogenic shock: choosing the right mechanical circulatory support to improve outcomes. JTCVS Open. 2023; 13: 200-13. doi: 10.1016/j.xjon.2022.12.011 pmid: 37063130
19	Chen WC, Huang KY, Yao CW, Wu CF, Liang SJ, Li CH, et al. The modified SAVE score: predicting survival using urgent veno-arterial extracorporeal membrane oxygenation within 24 hours of arrival at the emergency department. Crit Care. 2016; 20(1): 336.
20	Santore LA, Schurr JW, Noubani M, Rabenstein A, Dhundale K, Bilfinger TV, et al. SAVE score with lactate modification predicts in-hospital mortality in patients with ongoing cardiac arrest during VA-ECMO cannulation. Int J Artif Organs. 2021; 44(10): 787-90.
21	Muller G, Flecher E, Lebreton G, Luyt CE, Trouillet JL, Bréchot N, et al. The ENCOURAGE mortality risk score and analysis of long-term outcomes after VA-ECMO for acute myocardial infarction with cardiogenic shock. Intensive Care Med. 2016; 42(3): 370-8. doi: 10.1007/s00134-016-4223-9 pmid: 26825953
22	Worku B, Gaudino M, Avgerinos D, Ramasubbu K, Gambardella I, Gulkarov I, et al. A comparison of existing risk prediction models in patients undergoing venoarterial extracorporeal membrane oxygenation. Heart Lung. 2020; 49(5): 599-604. doi: S0147-9563(20)30091-1 pmid: 32234259
23	Fried JA, Griffin JM, Masoumi A, Clerkin KJ, Witer LJ, Topkara VK, et al. Predictors of survival and ventricular recovery following acute myocardial infarction requiring extracorporeal membrane oxygenation therapy. ASAIO J. 2022; 68(6): 800-7. doi: 10.1097/MAT.0000000000001570 pmid: 35380184
24	Pang S, Rui ZA, Du Y, Zhou YH, Miao GR, Wang L, et al. Predicting value on short-term outcome of various established risk prediction models in extracorporeal membrane oxygenation treated cardiogenic shock patients due to ST-segment elevation myocardial infarction. Zhonghua Xin Xue Guan Bing Za Zhi. 2022; 50(9): 881-7.
25	Becher PM, Twerenbold R, Schrage B, Schmack B, Sinning CR, Fluschnik N, et al. Risk prediction of in-hospital mortality in patients with venoarterial extracorporeal membrane oxygenation for cardiopulmonary support: the ECMO-ACCEPTS score. J Crit Care. 2020; 56: 100-5. doi: S0883-9441(19)31572-2 pmid: 31896442
26	Wang LS, Yang F, Wang XM, Xie HX, Fan E, Ogino M, et al. Predicting mortality in patients undergoing VA-ECMO after coronary artery bypass grafting: the REMEMBER score. Crit Care. 2019; 23(1): 11.
27	Biancari F, Dell’Aquila AM, Mariscalco G. Predicting mortality after postcardiotomy venoarterial extracorporeal membrane oxygenation. Ann Transl Med. 2019; 7(Suppl 3): S100.
28	Vincent JL, Moreno R, Takala J, Willatts S, De Mendonça A, Bruining H, et al. The SOFA (Sepsis-related Organ Failure Assessment) score to describe organ dysfunction/failure. On behalf of the Working Group on Sepsis-Related Problems of the European Society of Intensive Care Medicine. Intensive Care Med. 1996; 22(7): 707-10.
29	Tongyoo S, Chanthawatthanarak S, Permpikul C, Ratanarat R, Promsin P, Kongsayreepong S. Extracorporeal membrane oxygenation (ECMO) support for acute hypoxemic respiratory failure patients: outcomes and predictive factors. J Thorac Dis. 2022; 14(2): 371-80. doi: 10.21037/jtd-21-1460 pmid: 35280476
30	Lambden S, Laterre PF, Levy MM, Francois B. The SOFA score-development, utility and challenges of accurate assessment in clinical trials. Crit Care. 2019; 23(1): 374.
31	Elabbassi W, Aila FA, Chowdhury MA, Najib A, Zaid H, Michelin M, et al. The impact of severity of initial illness, determined by SOFA score, and presence of Anemia on outcomes among patients requiring Extra Corporal Membrane Oxygenation (ECMO) support: a single center experience. Indian Heart J. 2017; 69(6): 762-6. doi: S0019-4832(16)30462-X pmid: 29174255
32	Knaus WA, Wagner DP, Draper EA. The value of measuring severity of disease in clinical research on acutely ill patients. J Chronic Dis. 1984; 37(6): 455-63. pmid: 6373808
33	Knaus WA, Draper EA, Wagner DP, Zimmerman JE. APACHE II: a severity of disease classification system. Crit Care Med. 1985; 13(10): 818-29. pmid: 3928249
34	Zimmerman JE, Kramer AA, McNair DS, Malila FM. Acute physiology and chronic health evaluation (APACHE) IV: hospital mortality assessment for today’s critically ill patients. Crit Care Med. 2006; 34(5): 1297-310. doi: 10.1097/01.CCM.0000215112.84523.F0 pmid: 16540951
35	Wang R, Sun B, Li XY, He HY, Tang X, Zhan QY, et al. Predictive values of different critical scoring systems for mortality in patients with severe acute respiratory failure supported by extracorporeal membrane oxygenation. Zhonghua Jie He He Hu Xi Za Zhi. 2016; 39(9): 698-703.
36	Kramer AA, Higgins TL, Zimmerman JE. Comparison of the mortality probability admission model III, national quality forum, and acute physiology and chronic health evaluation IV hospital mortality models: implications for national benchmarking. Crit Care Med. 2014; 42(3): 544-53.
37	Le Gall JR, Loirat P, Alperovitch A, Glaser P, Granthil C, Mathieu D, et al. A simplified acute physiology score for ICU patients. Crit Care Med. 1984; 12(11): 975-7. doi: 10.1097/00003246-198411000-00012 pmid: 6499483
38	Kim KI, Lee HS, Kim HS, Ha SO, Lee WY, Park SJ, et al. The pre-ECMO simplified acute physiology score II as a predictor for mortality in patients with initiation ECMO support at the emergency department for acute circulatory and/or respiratory failure: a retrospective study. Scand J Trauma Resusc Emerg Med. 2015; 23: 59.
39	Choi MJ, Ha SO, Kim HS, Park S, Han SJ, Lee SH. The simplified acute physiology score II as a predictor of mortality in patients who underwent extracorporeal membrane oxygenation for septic shock. Ann Thorac Surg. 2017; 103(4): 1246-53. doi: S0003-4975(16)30978-X pmid: 27743640

Score system	Score rubrics	Advantages	Limitations	Sample size and mortality
PRESERVE score^[6]	· Age · Body mass index · Immunocompromised status · SOFA score · Pre-ECMO MV duration · Prone positioning · Plateau pressure · PEEP	1) high accuracy in evaluating ARDS patients 2) fewer scoring items and convenient to use	1) indications need to be expanded 2) conservative parameter selection	140 (40%)
RESP score^[9]	· Age · Immunocompromised status · Pre-ECMO MV duration · Acute respiratory diagnosis group diagnoses · Central nervous system dysfunction · Acute non-pulmonary infection · Neuromuscular blockade agents before ECMO · Pre-ECMO nitric oxide use · Pre-ECMO bicarbonate infusion · Pre-ECMO cardiac arrest · PaCO₂ · Peak inspiratory pressure	1) sample size is large and representative 2) accurately predict prognosis	1) recalibration is needed as diseases and treatments develop 2) multiple evaluation items	2,355 (43%)
ECMOnet score^[13]	· Pre-ECMO hospital length of stay · Bilirubin · Creatinine · Hematocrit · Mean arterial pressure	1) high accuracy in evaluating patients with ARDS caused by influenza A 2) parameters are simple and easy to obtain	1) affected by patient’s comorbidities 2) needs further verification in patients with other respiratory failure	60 (32%)
